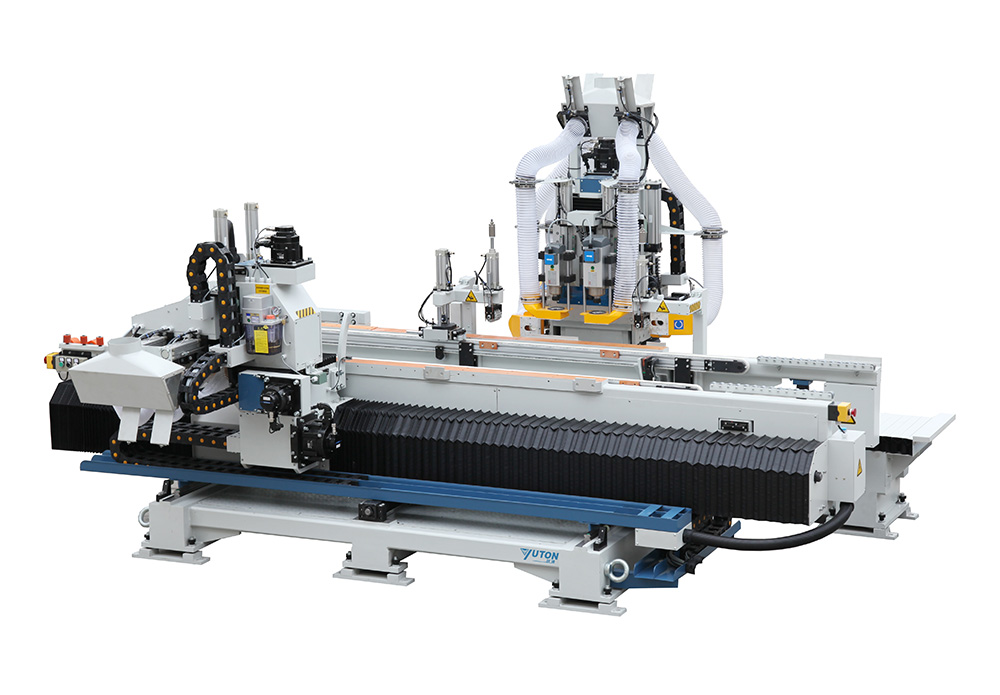

Function:Used for processing lock hole and hinge slot on door leaf.
- Automatic tool setting,multi-point measure,guarantees machining preciseness;
- Levo & dextro milling to ensure processing quality;
- Processing both longitudinal edge meantime with high efficiency;
- Following clamp patent,to avoid trouble of frequent adjusting clamp device;
- Bar code scanning,auto lubrication;
- Through-feed automatic feed-in & feed-out,feed-out direction could be forward or backward,to satisfy demand of single machine use and compose a line.
| Workpiece length |
1800-2400mm |
| Workpiece width |
400-1100mm |
| Workpiece thickness |
30-60mm |
| Lock-slot levo/dextro motor |
1.5kw / 6.0kw |
| Lock slot square |
0.4kw |
| Lock hole motor |
1.5kw+3.7kw |
| Hinge levo/dextro motor |
1.5kw / 3.7kw |
| Hinge square |
0.4kw |
| Tool max moving speed |
60m/min |
| Overall dimensions |
5000*3300*2350mm |
| Weight |
5500kg |
|
